Cosmo Optocouplers and Solid State Relays - Glomore Electro-tech

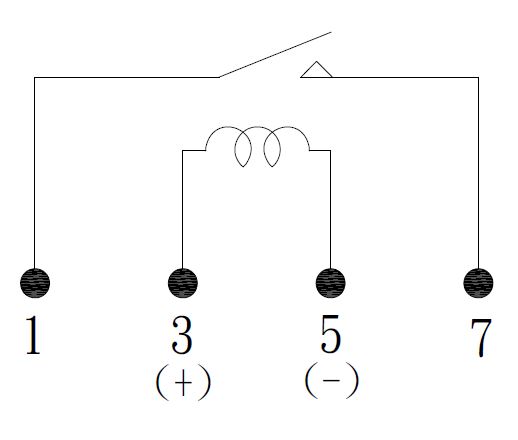

Type Number : S1A050000

Contact Form : 1A SPST-NO

Contact Resistance (mohm Max) : 100

Insulation Resistance (ohm min) :100G

Power Consumtion (VA max) : 10

Max Switching Voltage : 200 VDC

Max Switching Current : 0.5A

Min Breakdown Voltage : 1000 VDC

Nominal Voltage :5

Must Operate (VDC) :3.75

Coil Resistance e+/-10% :500

Must Release (VDC) : 1

UL CUL :◎

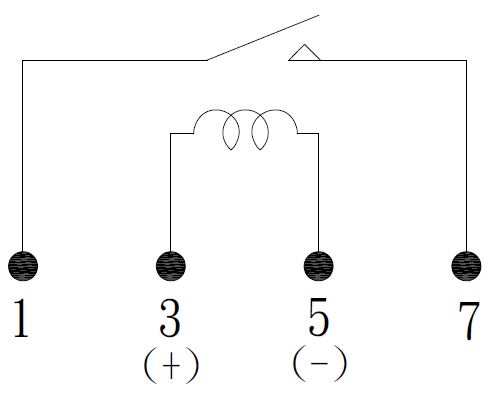

Type Number : S1A120000

Contact Form : 1A SPST-NO

Contact Resistance (mohm Max) : 100

Insulation Resistance (ohm min) :100G

Power Consumtion (VA max) : 10

Max Switching Voltage : 200 VDC

Max Switching Current : 0.5A

Min Breakdown Voltage : 1000 VDC

Nominal Voltage :12

Must Operate (VDC) :9

Coil Resistance e+/-10% :1000

Must Release (VDC) : 1.2

UL CUL :◎

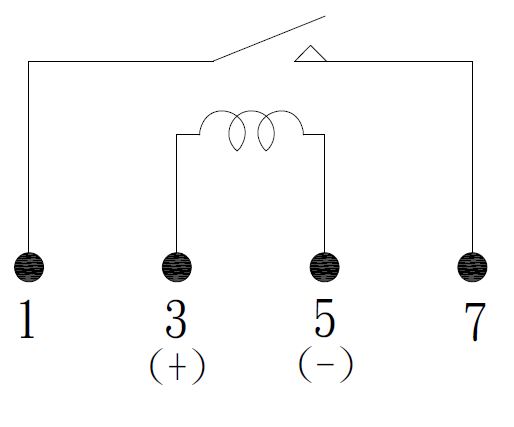

Type Number : S1A240000

Contact Form : 1A SPST-NO

Contact Resistance (mohm Max) : 100

Insulation Resistance (ohm min) :100G

Power Consumtion (VA max) : 10

Max Switching Voltage : 200 VDC

Max Switching Current : 0.5A

Min Breakdown Voltage : 1000 VDC

Nominal Voltage :24

Must Operate (VDC) :18

Coil Resistance e+/-10% :2000

Must Release (VDC) :2.4

UL CUL :◎

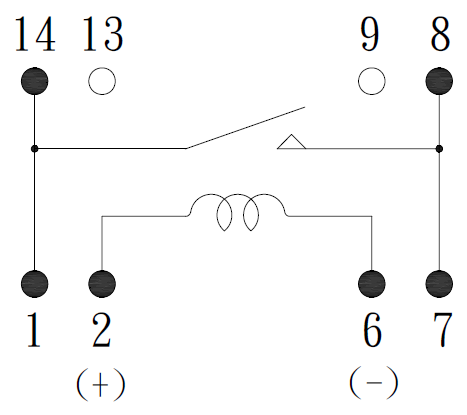

Type Number : D1A050000

Contact Form : 1A SPST-N0

Contact Resistance (mohm Max) : 100

Insulation Resistance (ohm min) :100G

Power Consumtion (VA max) : 10

Max Switching Voltage : 200 VDC

Max Switching Current : 0.5A

Min Breakdown Voltage : 500 VDC

Nominal Voltage :5

Must Operate (VDC) :3.75

Coil Resistance e+/-10% :500

Must Release (VDC) :1

UL CUL :◎

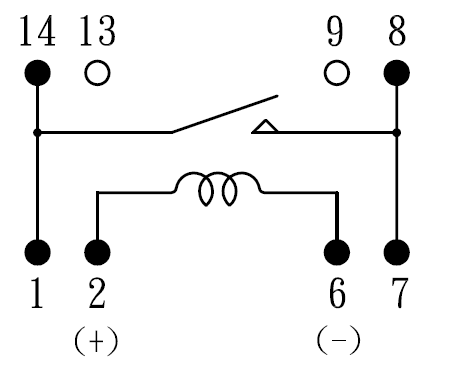

Type Number : D1A120000

Contact Form : 1A SPST-N0

Contact Resistance (mohm Max) : 100

Insulation Resistance (ohm min) :100G

Power Consumtion (VA max) : 10

Max Switching Voltage : 200 VDC

Max Switching Current : 0.5A

Min Breakdown Voltage : 500 VDC

Nominal Voltage :12

Must Operate (VDC) :9

Coil Resistance e+/-10% :1000

Must Release (VDC) :1.2

UL CUL :◎

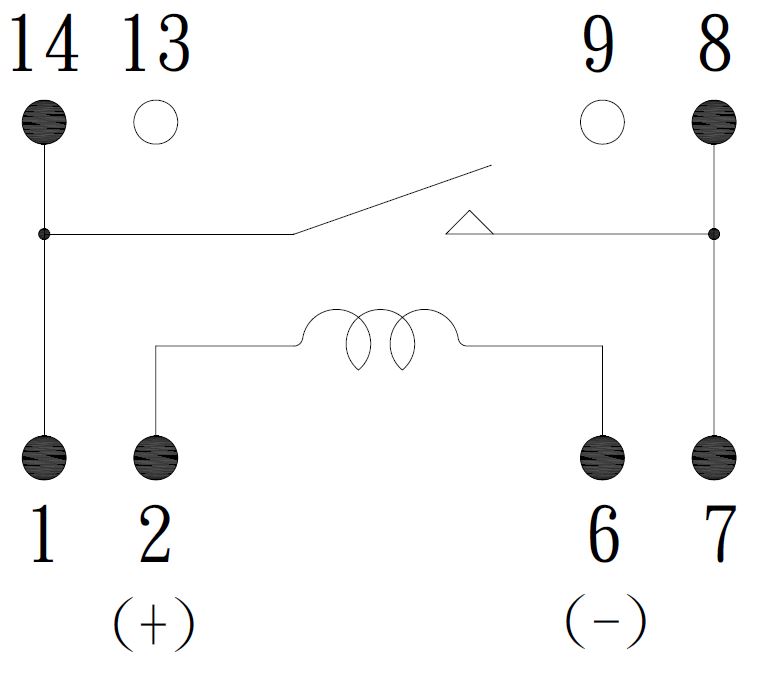

Type Number : D1A240000

Contact Form : 1A SPST-N0

Contact Resistance (mohm Max) : 100

Insulation Resistance (ohm min) :100G

Power Consumtion (VA max) : 10

Max Switching Voltage : 200 VDC

Max Switching Current : 0.5A

Min Breakdown Voltage : 500 VDC

Nominal Voltage :24

Must Operate (VDC) :18

Coil Resistance e+/-10% :2150

Must Release (VDC) :2.4

UL CUL :◎

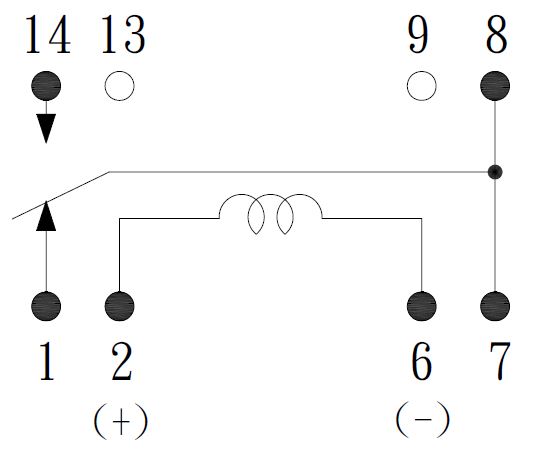

Type Number : D1C050000

Contact Form : 1C SPDT-CO

Contact Resistance (mohm Max) : 150

Insulation Resistance (ohm min) :1G

Power Consumtion (VA max) : 3

Max Switching Voltage : 100 VDC

Max Switching Current : 0.25A

Min Breakdown Voltage : 500 VDC

Nominal Voltage :8

Must Operate (VDC) :3.75

Coil Resistance e+/-10% :200

Must Release (VDC) :1

UL CUL :◎

Type Number : D1C120000

Contact Form : 1C SPDT-CO

Contact Resistance (mohm Max) : 150

Insulation Resistance (ohm min) :1G

Power Consumtion (VA max) : 3

Max Switching Voltage : 100 VDC

Max Switching Current : 0.25A

Min Breakdown Voltage : 500 VDC

Nominal Voltage :12

Must Operate (VDC) :9

Coil Resistance e+/-10% :500

Must Release (VDC) :1.2

UL CUL :◎

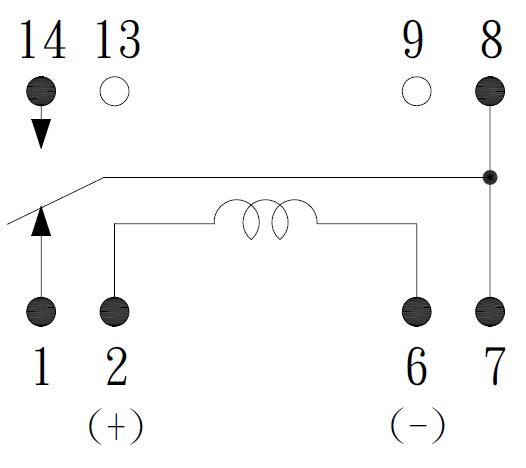

Type Number : D1C240000

Contact Form : 1C SPDT-CO

Contact Resistance (mohm Max) : 150

Insulation Resistance (ohm min) :1G

Power Consumtion (VA max) : 3

Max Switching Voltage : 100 VDC

Max Switching Current : 0.25A

Min Breakdown Voltage : 500 VDC

Nominal Voltage :24

Must Operate (VDC) :18

Coil Resistance e+/-10% :2150

Must Release (VDC) :2.4

UL CUL :◎

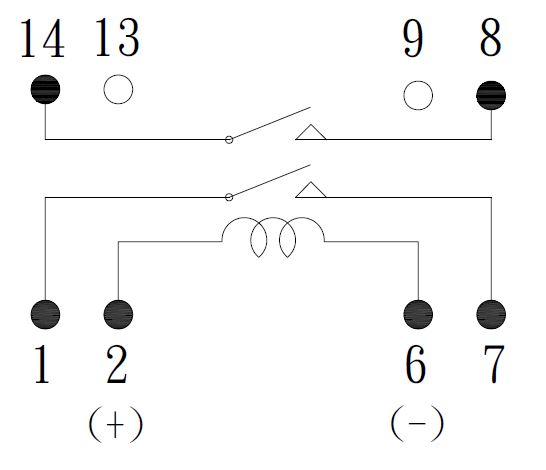

Type Number : D2A050000

Contact Form : 2A DPST-NO

Contact Resistance (mohm Max) : 100

Insulation Resistance (ohm min) :100G

Power Consumtion (VA max) : 10

Max Switching Voltage : 200 VDC

Max Switching Current : 0.5A

Min Breakdown Voltage : 500 VDC

Nominal Voltage :5

Must Operate (VDC) :3.75

Coil Resistance e+/-10% :140

Must Release (VDC) :1

UL CUL :◎

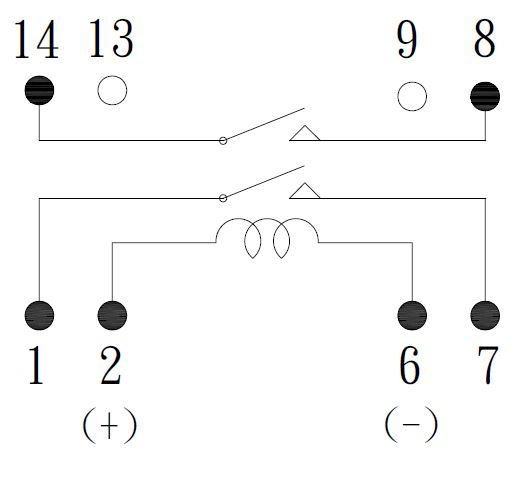

Type Number : D2A120000

Contact Form : 2A DPST-NO

Contact Resistance (mohm Max) : 100

Insulation Resistance (ohm min) :100G

Power Consumtion (VA max) : 10

Max Switching Voltage : 200 VDC

Max Switching Current : 0.5A

Min Breakdown Voltage : 500 VDC

Nominal Voltage :12

Must Operate (VDC) :9

Coil Resistance e+/-10% :500

Must Release (VDC) :1.2

UL CUL :◎

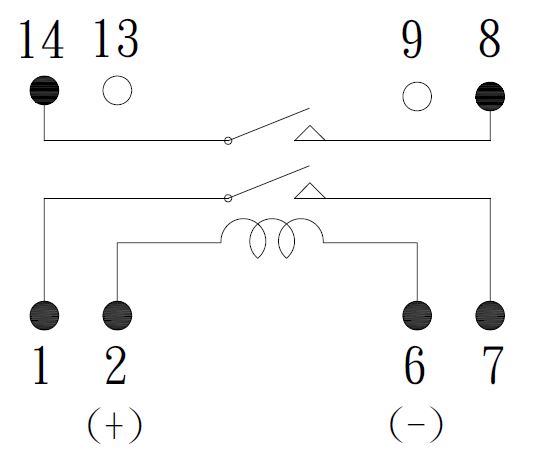

Type Number : D2A240000

Contact Form : 2A DPST-NO

Contact Resistance (mohm Max) : 100

Insulation Resistance (ohm min) :100G

Power Consumtion (VA max) : 10

Max Switching Voltage : 200 VDC

Max Switching Current : 0.5A

Min Breakdown Voltage : 500 VDC

Nominal Voltage :24

Must Operate (VDC) :18

Coil Resistance e+/-10% :2150

Must Release (VDC) :2.4

UL CUL :◎

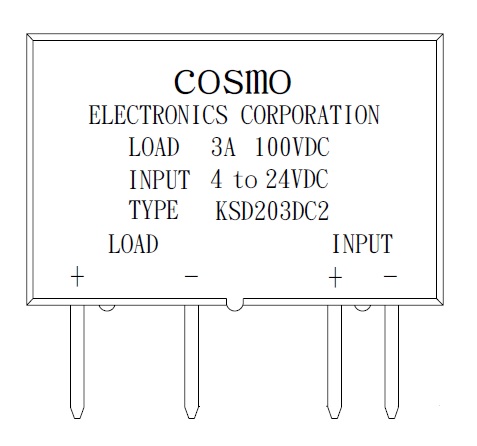

Model : KSD203DC2
Input Volt (V) : 4 ~ 24 VDC
I / O Type : DC-DC
Max Tirgger I (mA) : –
Max O / P I (A) : 3
Max O / P Volt (V) : 100VDC
ZC Option : –
Breakdown Voltage I / P to O / P : 4000
Mounting : PCB
UL CUL : ◎

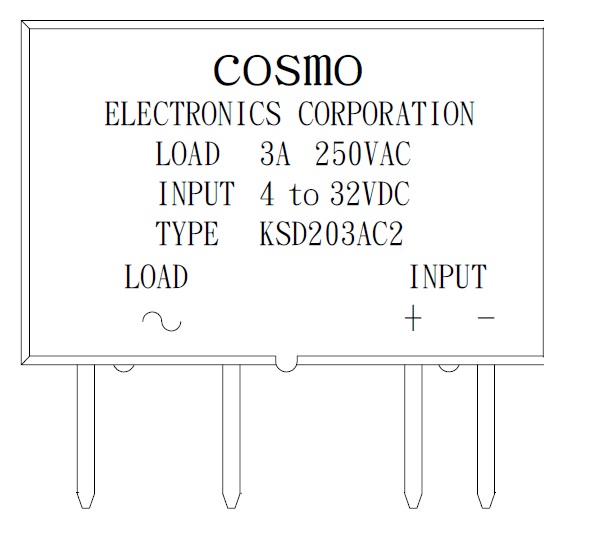

Model : KSD203AC2
Input Volt (V) : 4 ~ 32 VDC
I / O Type : DC-AC
Max Tirgger I (mA) : 10
Max O / P I (A) : 3
Max O / P Volt (V) : 250VAC
ZC Option : –
Breakdown Voltage I / P to O / P : 4000
Mounting : PCB
UL CUL : ◎

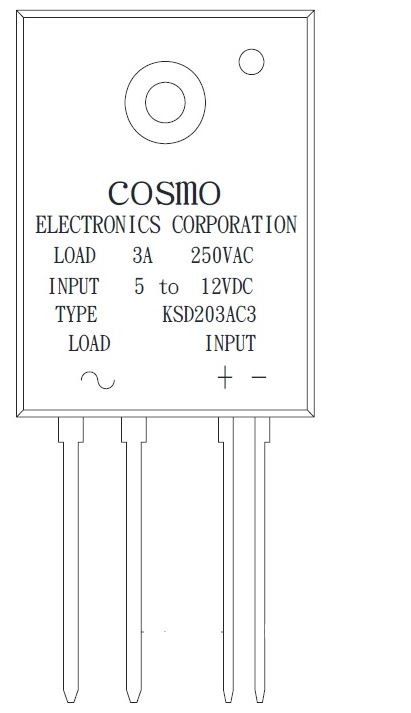

Model : KSD203AC3
Input Volt (V) : 5 ~ 12 VDC
I / O Type : DC-AC
Max Tirgger I (mA) : 10
Max O / P I (A) : 3
Max O / P Volt (V) : 250VAC
ZC Option : Y
Breakdown Voltage I / P to O / P : 4000
Mounting : PCB
UL CUL : ◎

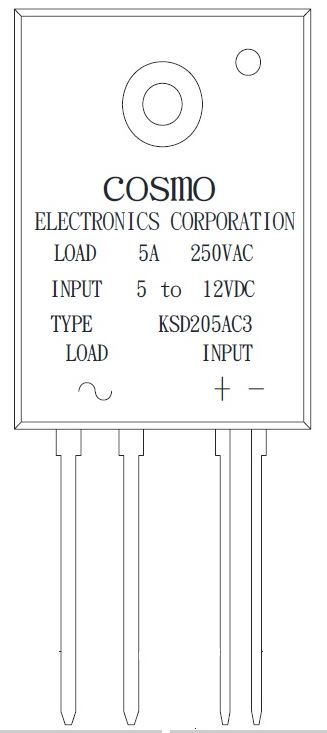

Model : KSD205AC3
Input Volt (V) : 5 ~ 12 VDC
I / O Type : DC-AC
Max Tirgger I (mA) : 10
Max O / P I (A) : 5
Max O / P Volt (V) : 250VAC
ZC Option : Y
Breakdown Voltage I / P to O / P : 4000
Mounting : PCB
UL CUL : ◎

Model : KSD210AC3
Input Volt (V) : 5 ~ 12 VDC
I / O Type : DC-AC
Max Tirgger I (mA) : 10
Max O / P I (A) : 5
Max O / P Volt (V) : 250VAC
ZC Option : Y
Breakdown Voltage I / P to O / P : 4000
Mounting : PCB
UL CUL : ◎

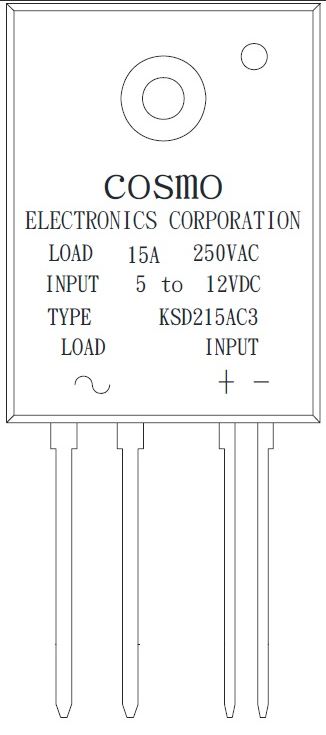

Model : KSD215AC3
Input Volt (V) : 5 ~ 12 VDC
I / O Type : DC-AC
Max Tirgger I (mA) : 25
Max O / P I (A) : 15
Max O / P Volt (V) : 250VAC
ZC Option : Y
Breakdown Voltage I / P to O / P : 4000
Mounting : PCB
UL CUL : ◎

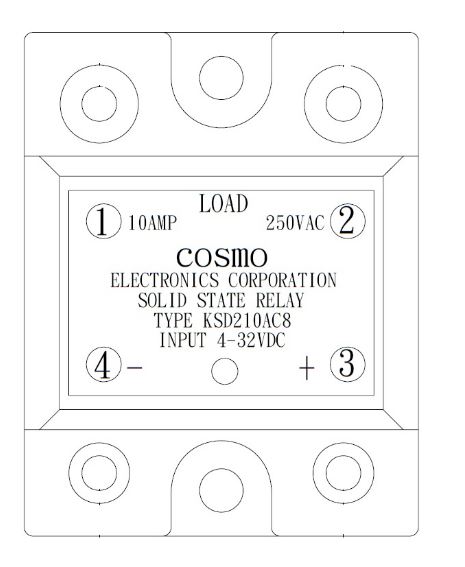

Model : KSD210AC8
Input Volt (V) : 4 ~ 32 VDC
I / O Type : DC-AC
Max Tirgger I (mA) : 10
Max O / P I (A) : 10
Max O / P Volt (V) : 250VAC
ZC Option : Y
Breakdown Voltage I / P to O / P : 4000
Mounting : Chassis
UL CUL : ◎

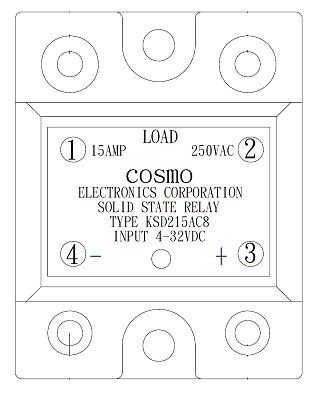

Model : KSD215AC8
Input Volt (V) : 4 ~ 32 VDC
I / O Type : DC-AC
Max Tirgger I (mA) : 25
Max O / P I (A) : 15
Max O / P Volt (V) : 250VAC
ZC Option : Y
Breakdown Voltage I / P to O / P : 4000
Mounting : Chassis
UL CUL : ◎

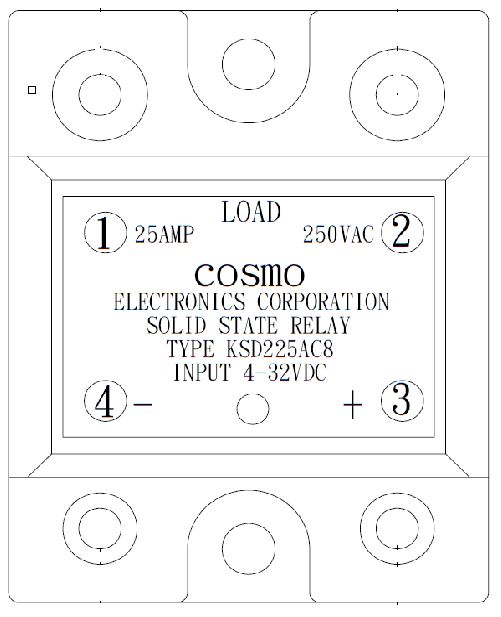

Model : KSD225AC8
Input Volt (V) : 4 ~ 32 VDC
I / O Type : DC-AC
Max Tirgger I (mA) : 25
Max O / P I (A) : 25
Max O / P Volt (V) : 250VAC
ZC Option : Y
Breakdown Voltage I / P to O / P : 4000
Mounting : Chassis
UL CUL : ◎

Model : KSD240AC8
Input Volt (V) : 4 ~ 32 VDC
I / O Type : DC-AC
Max Tirgger I (mA) : 25
Max O / P I (A) : 40
Max O / P Volt (V) : 250VAC
ZC Option : Y
Breakdown Voltage I / P to O / P : 4000
Mounting : Chassis
UL CUL : ◎

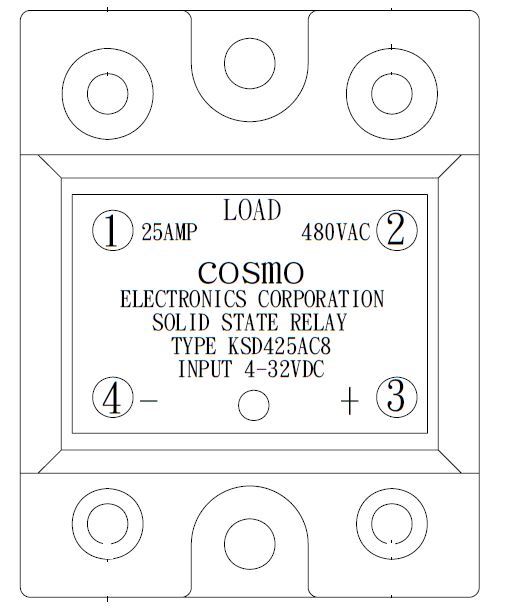

Model : KSD425AC8
Input Volt (V) : 4 ~ 32 VDC
I / O Type : DC-AC
Max Tirgger I (mA) : 25
Max O / P I (A) : 25
Max O / P Volt (V) : 480VAC
ZC Option : Y
Breakdown Voltage I / P to O / P : 4000
Mounting : Chassis
UL CUL : ◎

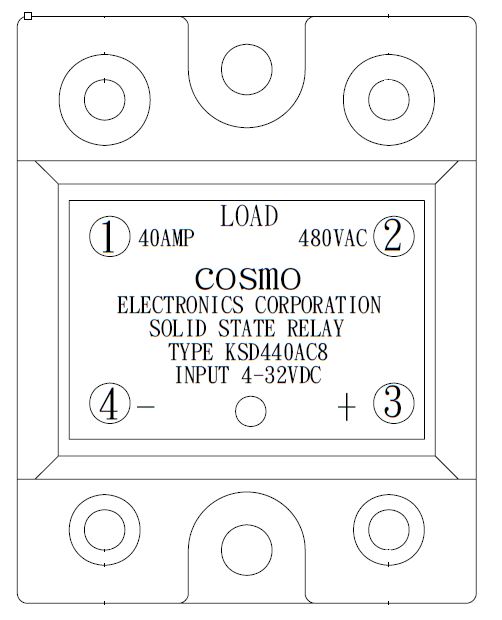

Model : KSD440AC8
Input Volt (V) : 4 ~ 32 VDC
I / O Type : DC-AC
Max Tirgger I (mA) : 25
Max O / P I (A) : 40
Max O / P Volt (V) : 480VAC
ZC Option : Y
Breakdown Voltage I / P to O / P : 4000
Mounting : Chassis
UL CUL : ◎

Model : KSA225AC8
Input Volt (V) : 100 ~ 240 VAC
I / O Type : AC-AC
Max Tirgger I (mA) : 25
Max O / P I (A) : 25
Max O / P Volt (V) : 250VAC
ZC Option : Y
Breakdown Voltage I / P to O / P : 4000
Mounting : Chassis
UL CUL : ◎

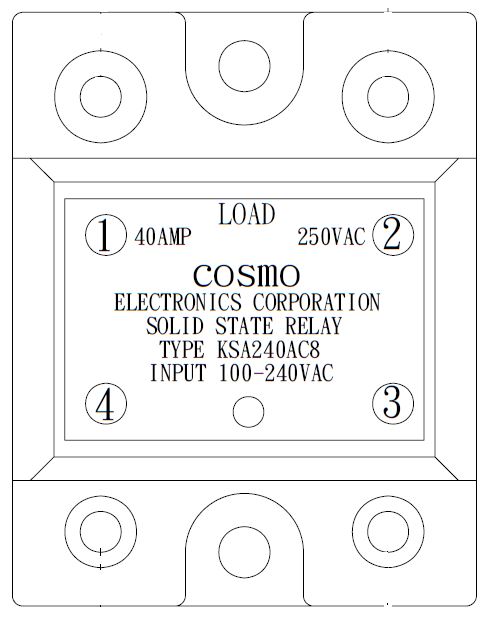

Model : KSA240AC8
Input Volt (V) : 100 ~ 240 VAC
I / O Type : AC-AC
Max Tirgger I (mA) : 25
Max O / P I (A) : 40
Max O / P Volt (V) : 250VAC
ZC Option : Y
Breakdown Voltage I / P to O / P : 4000
Mounting : Chassis
UL CUL : ◎

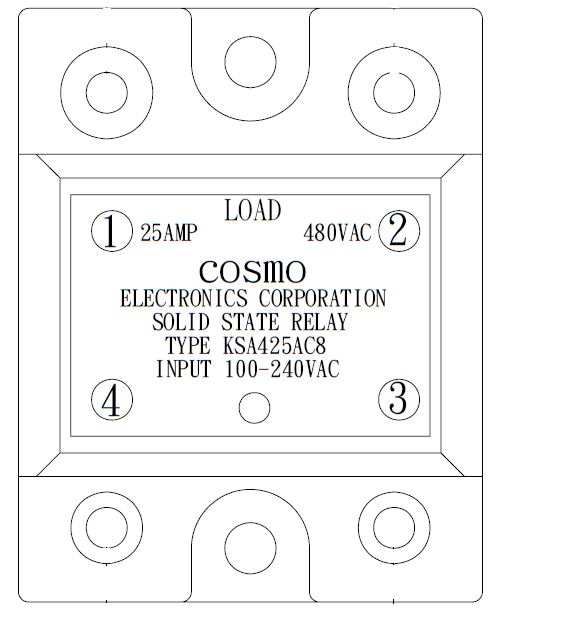

Model : KSA425AC8
Input Volt (V) : 100 ~ 240 VAC
I / O Type : AC-AC
Max Tirgger I (mA) : 25
Max O / P I (A) : 25
Max O / P Volt (V) : 480VAC
ZC Option : Y
Breakdown Voltage I / P to O / P : 4000
Mounting : Chassis
UL CUL : ◎

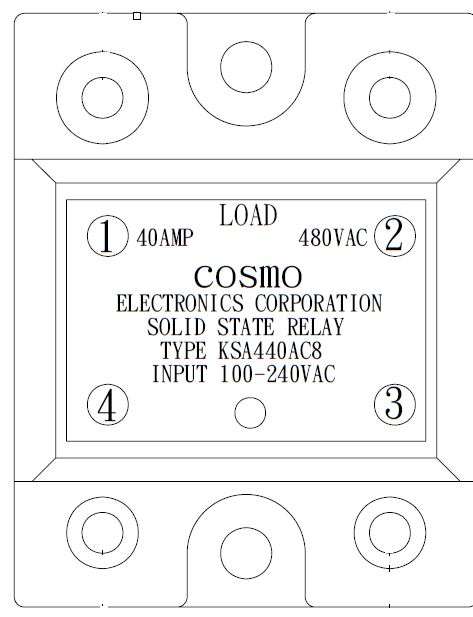

Model : KSA440AC8
Input Volt (V) : 100 ~ 240 VAC
I / O Type : AC-AC
Max Tirgger I (mA) : 25
Max O / P I (A) : 40
Max O / P Volt (V) : 480VAC
ZC Option : Y
Breakdown Voltage I / P to O / P : 4000
Mounting : Chassis
UL CUL : ◎
