RGB TFT Display

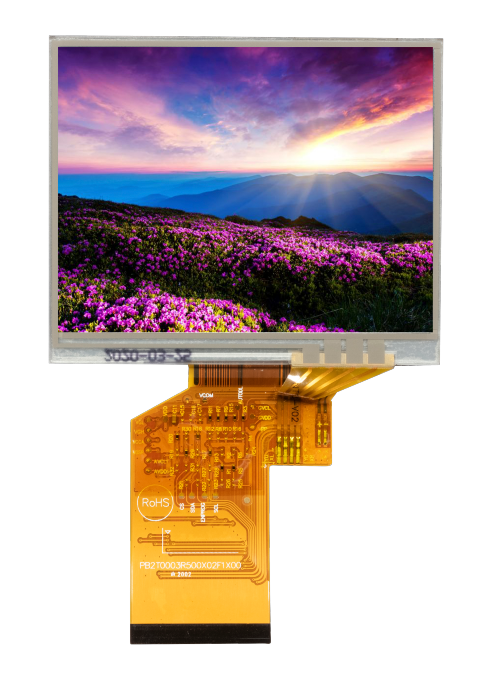

Size (inch) : 3.5
Display Format : 320 x RGB x 240
Outline Dimension W x H x T (mm) : 76.84 x 63.84 x 3.27
Viewing Area W x H (mm) : 73.10 x 55.50
Active Area W x H (mm) : 70.08 x 52.56
Interface : 24-bit RGB
Controller : ST7272A
Touch Screen : NO

Size (inch) : 3.5
Display Format : 320 x RGB x 240
Outline Dimension W x H x T (mm) : 76.84 x 63.84 x 4.37
Viewing Area W x H (mm) : 72.16 x 54.60
Active Area W x H (mm) : 70.08 x 52.56
Interface : 24-bit RGB
Controller : ST7272A
Touch Screen : RTP

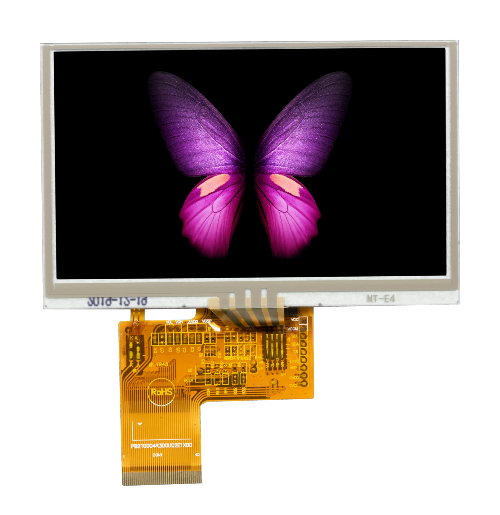

Size (inch) : 4.3
Display Format : 480 x RGBx272
Outline Dimension W x H x T (mm) : 105.4 x 67.1 x 2.95
Viewing Area W x H (mm) : 98.48 x 57.19
Active Area W x H (mm) : 95.04 x 53.856
Interface : 24-bit RGB
Controller : ST7282-G4-1L
Touch Screen : NO

Size (inch) : 4.3
Display Format : 480 x RGBx272
Outline Dimension W x H x T (mm) : 105.5 x 67.2 x 4.05
Viewing Area W x H (mm) : 98.70 x 57.50
Active Area W x H (mm) : 95.04 x 53.856
Interface : 24-bit RGB
Controller : ST7282-G4-1L
Touch Screen : RTP

Size (inch) : 4.3
Display Format : 480 x RGBx272
Outline Dimension W x H x T (mm) : 105.4 x 67.1 x 4.6
Viewing Area W x H (mm) : 97 x 56
Active Area W x H (mm) : 95.04 x 53.856
Interface : 24-bit RGB
Controller : ST7282-G4-1L
Touch Screen : CTP

Size (inch) : 4.3
Display Format : 480 x RGBx272
Outline Dimension W x H x T (mm) : 105.4 x 67.1 x 4.6
Viewing Area W x H (mm) : 97 x 56
Active Area W x H (mm) : 95.04 x 53.856
Interface : 24-bit RGB
Controller : SC7283
Touch Screen : CTP

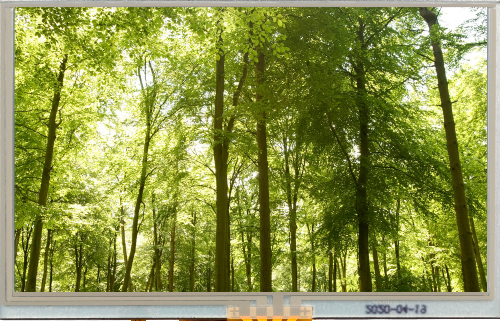

Size (inch) : 5
Display Format : 800 × 3(RGB) × 480
Outline Dimension W x H x T (mm) : 120.7 ×75.8 ×2.8
Viewing Area W x H (mm) : 110.7 X 67.4
Active Area W x H (mm) : 108 × 64.8
Interface : 24-bit RGB
Controller : –
Touch Screen : NO

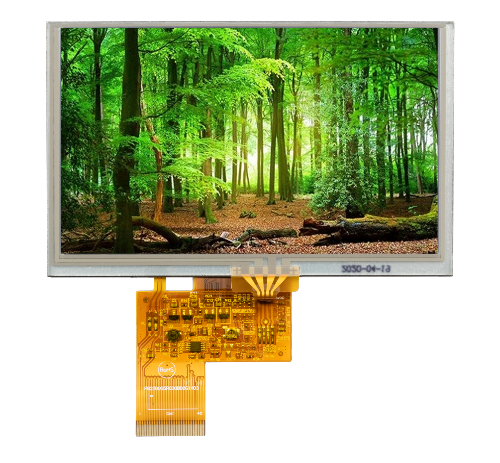

Size (inch) : 5
Display Format : 800 × 3(RGB) × 480
Outline Dimension W x H x T (mm) : 120.7 ×75.8 × 4.3
Viewing Area W x H (mm) : 111.70 x 65.91
Active Area W x H (mm) : 108 × 64.8
Interface : 24-bit RGB
Controller : –
Touch Screen : RTP

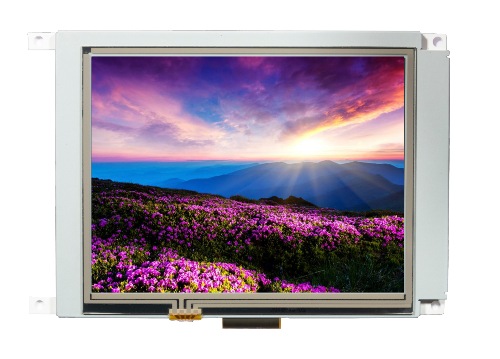

Size (inch) : 5.7
Display Format : 320 x RGB x 240
Outline Dimension W x H x T (mm) : 160.0 x 109.0 x 8.3
Viewing Area W x H (mm) : 111.28 x 88.64
Active Area W x H (mm) : 115.20 x 86.40
Interface : 24-bit RGB
Controller : ST7262
Touch Screen : NO

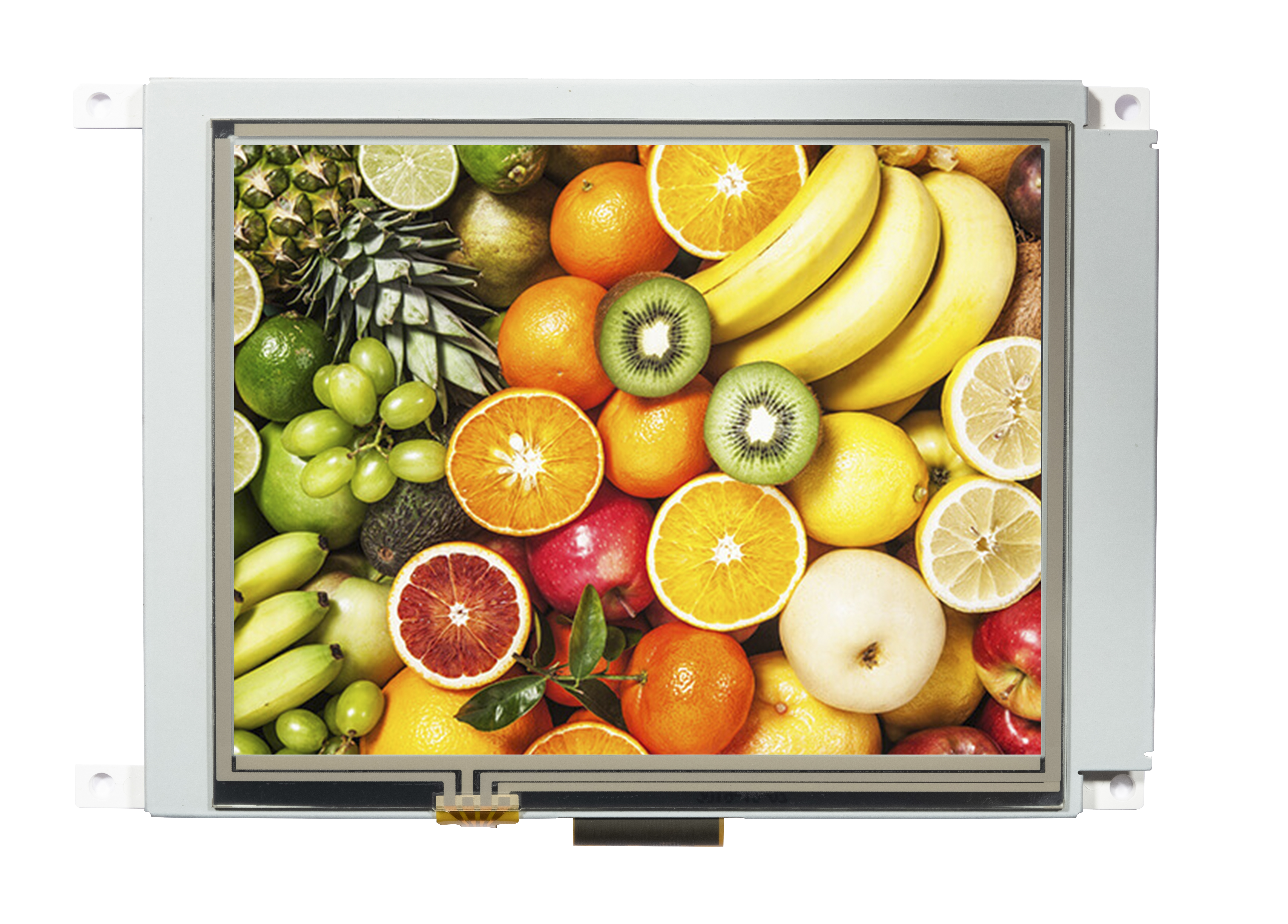

Size (inch) : 5.7
Display Format : 320 x RGB x 240
Outline Dimension W x H x T (mm) : 160.0 x 109.0 x 9.8
Viewing Area W x H (mm) : 118.20 x 89.20
Active Area W x H (mm) : 115.20 x 86.40
Interface : 24-bit RGB
Controller : ST7262
Touch Screen : RTP

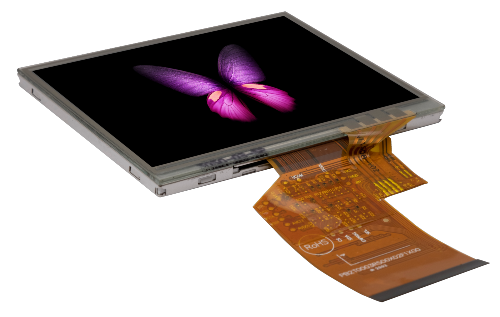

Size (inch) : 7
Display Format : 800 × 3(RGB) × 480
Outline Dimension W x H x T (mm) : 165 x 100.0 x 5.7
Viewing Area W x H (mm) : 157 x 89.50
Active Area W x H (mm) : 154.08 x 85.92
Interface : 24-bit RGB
Controller : ST-5623D
Touch Screen : NO

Size (inch) : 7
Display Format : 800 × 3(RGB) × 480
Outline Dimension W x H x T (mm) : 165 x 100.0 x 7.2
Viewing Area W x H (mm) : 156.60 x 89.10
Active Area W x H (mm) : 154.08 x 85.92
Interface : 24-bit RGB
Controller : ST-5623D
Touch Screen : RTP
