MIPI TFT Display

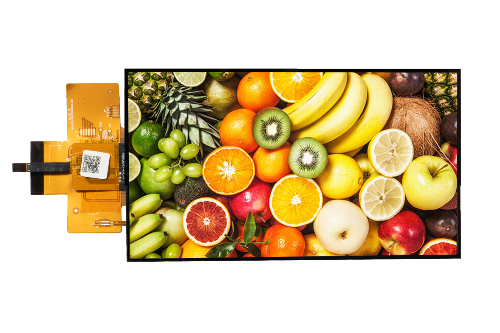

Part no. : GM-MI-040PWV-CA-L
Size (inch) : 4
Display Format : 480× 3(RGB) × 800
General Description : 4 inch IPS TFT
Outline Dimension W x H x T (mm) : 57.14×96.85 x2.15
Viewing Area W x H (mm) : 87.40 x 52.84
Active Area W x H (mm) : 86.4 x 51.84
Driver IC : ST7701S
Interface : MIPI
Touch Screen : NO

Part no. : GM-MI-050PHD-DA-L
Size (inch) : 5
Display Format : 720×3(RGB) ×1280
General Description : 5 inch IPS TFT
Outline Dimension W x H x T (mm) : 120.4 × 66.10 x 1.85
Viewing Area W x H (mm) : 111.40 x 63.10
Active Area W x H (mm) : 110.4 x 62.1
Driver IC : ILI9881C or Eq
Interface : MIPI
Touch Screen : NO

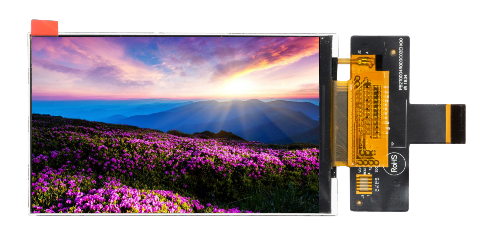

Part no. : GM-MI-050PHD-DA-L-C
Size (inch) : 5
Display Format : 720×3(RGB) ×1280
General Description : 5 inch IPS TFT
Outline Dimension W x H x T (mm) : 127.6 × 73.3 x 3.45
Viewing Area W x H (mm) : 111.40 x 63.10
Active Area W x H (mm) : 110.4 x 62.1
Driver IC : ILI9881C or Eq
Interface : MIPI
Touch Screen : CTP

Part no. : GM-MI-050PHD-DA-HL
Size (inch) : 5
Display Format : 720× 3(RGB) ×1280
General Description : 5 inch IPS, High Brightness
Outline Dimension W x H x T (mm) : 122.7 x 68.4 ×4.15
Viewing Area W x H (mm) : 112.3 x 64.10
Active Area W x H (mm) : 110.4 x 62.1
Driver IC : ILI9881C or Eq
Interface : MIPI
Touch Screen : NO

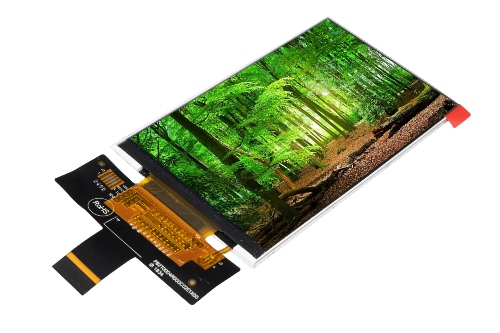

Part no. : GM-MI-050PHD-DA-HL-C
Size (inch) : 5
Display Format : 720×3(RGB) ×1280
General Description : 5 inch IPS, High Brightness
Outline Dimension W x H x T (mm) : 127.6 × 73.3 x 5.75
Viewing Area W x H (mm) : 111.40 x 63.10
Active Area W x H (mm) : 110.4 x 62.1
Driver IC : GT928 or Eq
Interface : MIPI
Touch Screen : CTP
