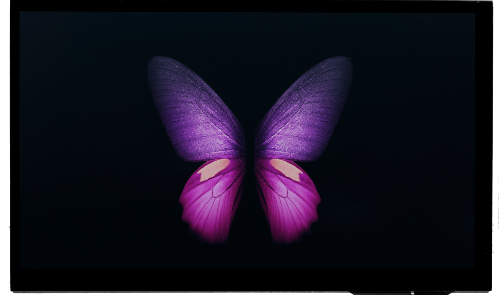

MCU TFT Display

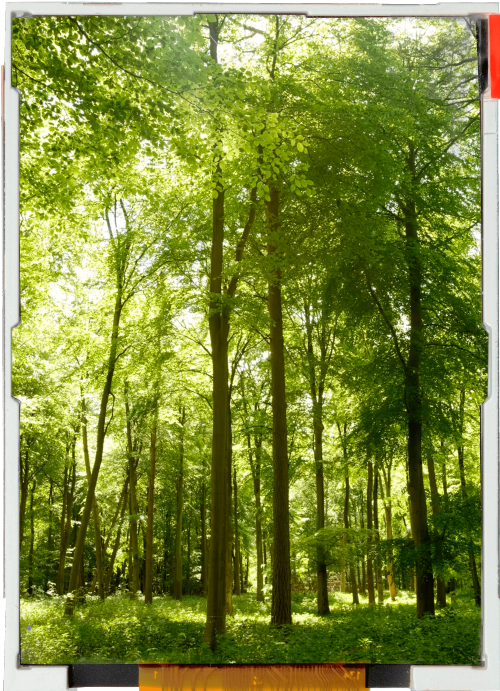

Size (inch) : 1.8"
Display Format : 128 RGB x 160
Outline Dimension W x H x T (mm) : 34.701 x 46.75 x 2.25
Viewing Area W x H (mm) : –
Active Area W x H (mm) : 28.032 x 35.04
Interface : MCU 8bit
Controller : ILI9163V
Touch Screen : NO

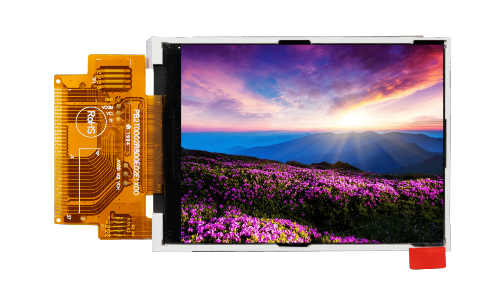

Size (inch) : 2.8"
Display Format : 320 X 240 (RGB)
Outline Dimension W x H x T (mm) : 50 x 69.2 x 4.1
Viewing Area W x H (mm) : –
Active Area W x H (mm) : 43.2 x 57.6
Interface : CPU interface 16bit
Controller : HX8347
Touch Screen : NO

Size (inch) : 2.8"
Display Format : 320 X 240 (RGB)
Outline Dimension W x H x T (mm) : 50 x 69.2 x 4.1
Viewing Area W x H (mm) : –
Active Area W x H (mm) : 43.2 x 57.6
Interface : CPU interface 16bit
Controller : HX8347
Touch Screen : RTP

Size (inch) : 3.5"
Display Format : 320 x RGB x 240
Outline Dimension W x H x T (mm) : 93.5 x 66.44 x 7.3
Viewing Area W x H (mm) : 73.10 x 55.60
Active Area W x H (mm) : 70.08 x 52.56
Interface : MPU 8bit/16bit
Controller : SSD1963
Touch Screen : NO

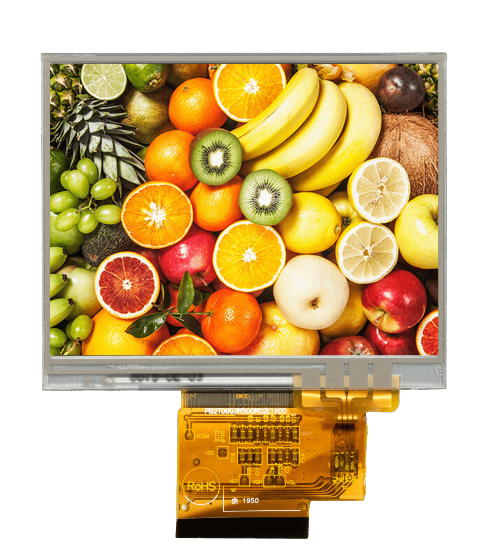

Size (inch) : 3.5"
Display Format : 320 x RGB x 240
Outline Dimension W x H x T (mm) : 93.5 x 66.44 x 8.5
Viewing Area W x H (mm) : 72.10 x 54.60
Active Area W x H (mm) : 70.08 x 52.56
Interface : MPU 8bit/16bit
Controller : SSD1963
Touch Screen : RTP

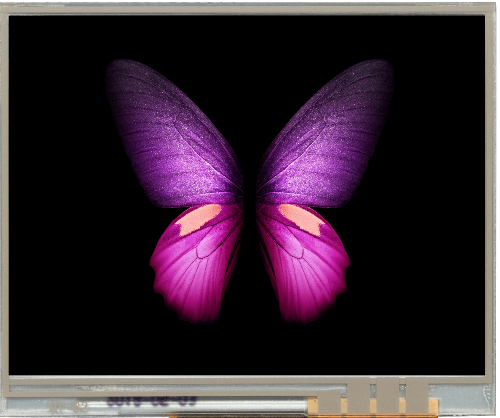

Size (inch) : 3.5"
Display Format : 320 x RGB x 240
Outline Dimension W x H x T (mm) : 93.5 x 66.44 x 8.5
Viewing Area W x H (mm) : 71.00 x 53.00
Active Area W x H (mm) : 70.08 x 52.56
Interface : MPU 8bit/16bit
Controller : SSD1963
Touch Screen : CTP

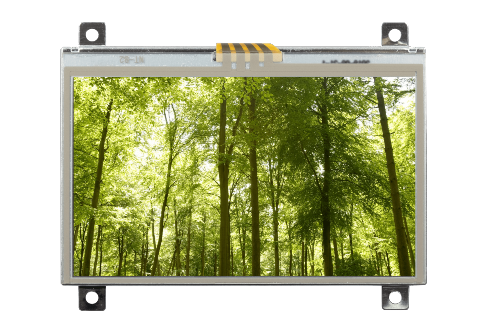

Size (inch) : 4.3"
Display Format : 480 x RGB x 272
Outline Dimension W x H x T (mm) : 106.7 x 69.6 x 6.95
Viewing Area W x H (mm) : 98.8 x 57.5
Active Area W x H (mm) : 95.04 x 53.856
Interface : MPU 8bit/16bit
Controller : SSD1963
Touch Screen : NO

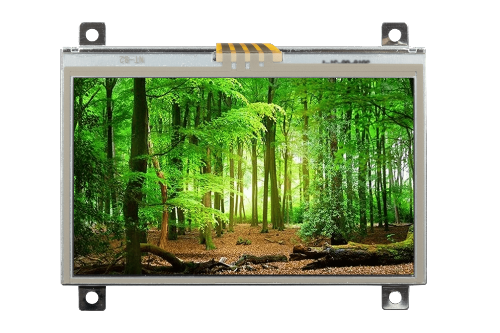

Size (inch) : 4.3"
Display Format : 480 x RGB x 272
Outline Dimension W x H x T (mm) : 106.7 x 69.6 x 6.95
Viewing Area W x H (mm) : 97 x 56
Active Area W x H (mm) : 95.04 x 53.856
Interface : MPU 8bit/16bit
Controller : SSD1963
Touch Screen : CTP

Size (inch) : 5"
Display Format : 800 x 3(RGB)x 480
Outline Dimension W x H x T (mm) : 120.7 x 75.8 x 8.0
Viewing Area W x H (mm) : 110.7 x 67.4
Active Area W x H (mm) : 108.0 x 64.8
Interface : MPU 8bit/16bit
Controller : SSD1963
Touch Screen : NO

Size (inch) : 5"
Display Format : 800 x 3(RGB)x 480
Outline Dimension W x H x T (mm) : 120.7 x 75.8 x 8.0
Viewing Area W x H (mm) : 111.7 x 65.9
Active Area W x H (mm) : 108.0 x 64.8
Interface : MPU 8bit/16bit
Controller : SSD1963
Touch Screen : RTP

Size (inch) : 5"
Display Format : 800 x 3(RGB)x 480
Outline Dimension W x H x T (mm) : 120.7 x 75.8 x 8.0
Viewing Area W x H (mm) : 109 x 65.1
Active Area W x H (mm) : 108.0 x 64.8
Interface : MPU 8bit/16bit
Controller : SSD1963
Touch Screen : CTP

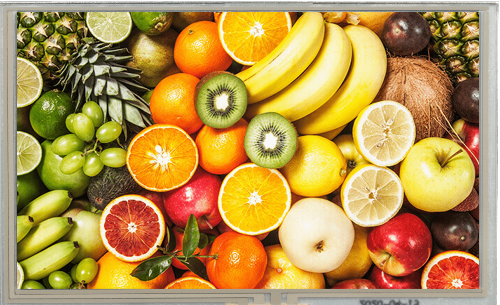

Size (inch) : 5.7'
Display Format : 320 x RGB x 240
Outline Dimension W x H x T (mm) : 149.0 x 109.0 x 11.5
Viewing Area W x H (mm) : 118.28 x 88.6
Active Area W x H (mm) : 115.2×86.4
Interface : MPU 8bit/16bit
Controller : SSD1963
Touch Screen : NO

Size (inch) : 5.7'
Display Format : 320 x RGB x 240
Outline Dimension W x H x T (mm) : 141.12 x 101.55 x 15.24
Viewing Area W x H (mm) : 117.90 x 89.1
Active Area W x H (mm) : 115.2 x 86.4
Interface : MPU 8bit/16bit
Controller : SSD1963
Touch Screen : CTP

Size (inch) : 5.7'
Display Format : 320 x RGB x 240
Outline Dimension W x H x T (mm) : 141.12 x 101.55 x 15.24
Viewing Area W x H (mm) : 117.90 x 89.1
Active Area W x H (mm) : 115.2 x 86.4
Interface : MPU 8bit/16bit
Controller : SSD1963
Touch Screen : NO

Size (inch) : 5.7'
Display Format : 320 x RGB x 240
Outline Dimension W x H x T (mm) : 141.12 x 101.55 x 15.24
Viewing Area W x H (mm) : 117.90 x 89.1
Active Area W x H (mm) : 115.2 x 86.4
Interface : MPU 8bit/16bit
Controller : SSD1963
Touch Screen :RTP

Size (inch) : 7"
Display Format : 800 x 480 WVGA
Outline Dimension W x H x T (mm) : 165.0 x 100.0 x 11.5
Viewing Area W x H (mm) : 157 x 89.50
Active Area W x H (mm) : 154.08 x 85.92
Interface : MPU 8bit/16bit
Controller : SSD1963
Touch Screen :NO

Size (inch) : 7"
Display Format : 800 x 480 WVGA
Outline Dimension W x H x T (mm) : 165.0 x 100.0 x 11.5
Viewing Area W x H (mm) : 157 x 89.50
Active Area W x H (mm) : 154.08 x 85.92
Interface : MPU 8bit/16bit
Controller : SSD1963
Touch Screen :NO

Size (inch) : 8.0"
Display Format : 800 x RGBx480
Outline Dimension W x H x T (mm) : 192.8 x 116.9 x 12.1
Viewing Area W x H (mm) : 180.10 x 103.40
Active Area W x H (mm) : 176.64 x 99.36
Interface : MPU 8bit/16bit
Controller : SSD1963
Touch Screen :RTP

Size (inch) : 8.0"
Display Format : 800 x RGBx480
Outline Dimension W x H x T (mm) : 192.8 x 116.9 x 13.8
Viewing Area W x H (mm) : 180.44 x 103.40
Active Area W x H (mm) : 176.64 x 99.36
Interface : MPU 8bit/16bit
Controller : SSD1963
Touch Screen :RTP

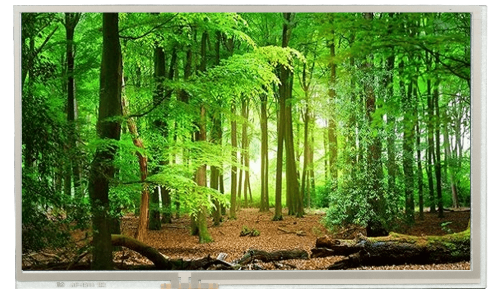

Size (inch) : 10.2"
Display Format : 800 x RGBx480
Outline Dimension W x H x T (mm) : 235.0 x145.0 x 10.2
Viewing Area W x H (mm) : 225.30 x 135.70
Active Area W x H (mm) : 222.0 × 132.48
Interface : MPU 8bit/16bit
Controller : SSD1963
Touch Screen :NO

Size (inch) : 10.2"
Display Format : 800 x RGBx480
Outline Dimension W x H x T (mm) : 235.0 x145.0 x 10.2
Viewing Area W x H (mm) : 225.30 x 135.70
Active Area W x H (mm) : 222.0 × 132.48
Interface : MPU 8bit/16bit
Controller : SSD1963
Touch Screen :RTP
