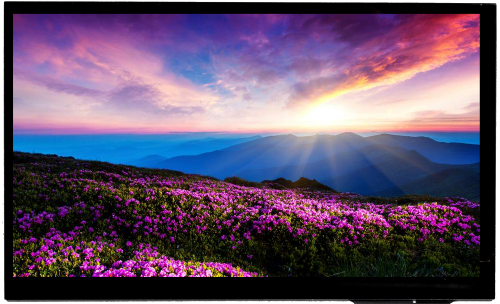

LVDS TFT Display

Part no. : GTM-L-070WS-A8-L
Size (inch) : 7
Display Format : 1024 x RGB x 600
Outline Dimension W x H x T (mm) : 1169.9 x 103.4 x 7.275
Viewing Area W x H (mm) : 156.08 x 87.92
Active Area W x H (mm) : 154.21 x 85.92
Interface : LVDS
Controller : ST5021 + ST5651
Touch Screen : NO

Part no. : GTM-L-070WS-A8-L-4
Size (inch) : 7
Display Format : 1024 x RGB x 600
Outline Dimension W x H x T (mm) : 169.9 x 103.4 x 7.275
Viewing Area W x H (mm) : 156.08 x 87.92
Active Area W x H (mm) : 154.21 x 85.92
Interface : LVDS
Controller : ST5021 + ST5651
Touch Screen : RTP

Part no. : GTM-L-070WS-A8-L-G
Size (inch) : 7
Display Format : 1024 x RGB x 600
Outline Dimension W x H x T (mm) : 169.9 x 103.4 x 7.275
Viewing Area W x H (mm) : 156.08 x 87.92
Active Area W x H (mm) : 154.21 x 85.92
Interface : LVDS
Controller : ST5021 + ST5651
Touch Screen : CTP

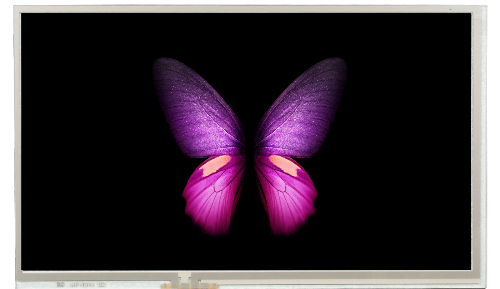

Part no. : GTM-L-101WS-GA-L
Size (inch) : 10.1
Display Format : 1280 × RGB × 800
Outline Dimension W x H x T (mm) : 257.96 x 168.6 x 5.575
Viewing Area W x H (mm) : 218 x 137
Active Area W x H (mm) : 216.96 x 135.6
Interface : LVDS
Controller : –
Touch Screen : No

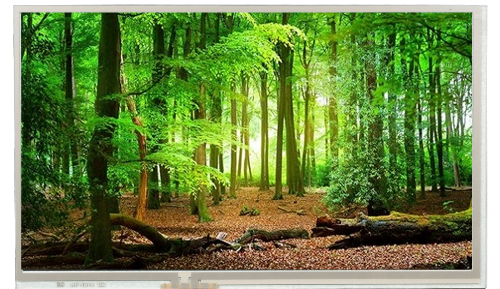

Part no. : GTM-L-101WS-GA-L-R
Size (inch) : 10.1
Display Format : 1280 × RGB × 800
Outline Dimension W x H x T (mm) : 257.96 x 168.6 x 5.575
Viewing Area W x H (mm) : 218 x 137
Active Area W x H (mm) : 216.96 x 135.6
Interface : LVDS
Controller : –
Touch Screen : RTP

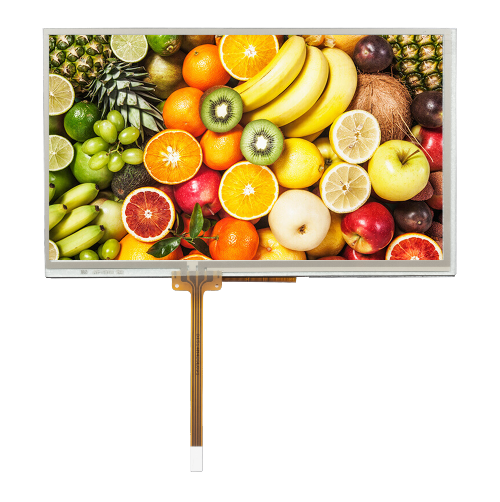

Part no. : GTM-L-101WS-GA-L-G
Size (inch) : 10.1
Display Format : 1280 × RGB × 800
Outline Dimension W x H x T (mm) : 257.96 x 168.6 x 5.575
Viewing Area W x H (mm) : 218 x 137
Active Area W x H (mm) : 216.96 x 135.6
Interface : LVDS
Controller : –
Touch Screen : CTP

Part no. : GTM-L-104XG-FA-L
Size (inch) : 10.4
Display Format : 1024 x RGB x 768
Outline Dimension W x H x T (mm) : 236.0 x 176.9 x 5.7
Viewing Area W x H (mm) : 214.8 X 162
Active Area W x H (mm) : 211.2 x 158.4
Interface : LVDS
Controller : –
Touch Screen : NO

Part no. : GTM-L-121XG-EA-L
Size (inch) : 12.1
Display Format : 1024 x RGB x 768
Outline Dimension W x H x T (mm) : 260.5 x 204.0 x 8.4
Viewing Area W x H (mm) : 249 X 187.5
Active Area W x H (mm) : 245.76 x 184.32
Interface : LVDS
Controller : –
Touch Screen : No
